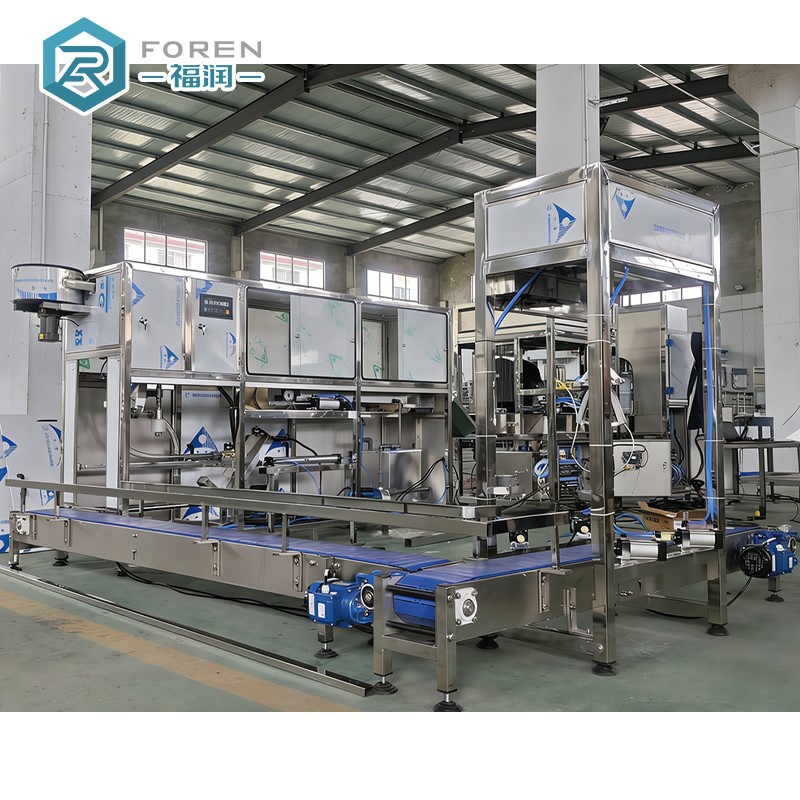

The 120bph barrel water filling equipment is compatible with 5-gallon recirculating barrels. The machine features a complete process including cap removal, cleaning, filling, capping, and post-processing, eliminating the need for complex manual intervention and achieving integrated automated production from empty barrel handling to finished product palletizing.
This barrel water filling equipment is suitable for small to medium-sized water plants, chain water stations, and community water supply centers, balancing practicality and economy.
The 120bph barrel water filling equipment uses a stainless steel frame and PVC pipes. Stainless steel and PVC materials are safer in contact with water and are easy to clean. All stainless steel materials used in the equipment undergo mirror polishing to eliminate the hazards of heavy metal residues, ensuring drinking water safety from the source.
120bph barrel water filling equipment includes:
Removing cover machine; bottle outer wall brushing machine; bottle internal cleaning machine; filling machine; cap sorting machine; capping machine; heat shrink machine; laser marking machine; bagging machine; palletizing machine.
Each piece of 120bph barrel water filling equipment undergoes rigorous testing for smooth operation, requiring minimal manual intervention, and avoiding errors and contamination risks associated with manual operation.
The following details the machine composition and operation process of the 120bph barrel water filling equipment.
The first machine in a barrel water filling equipment is the capping machine. It can pull out the lid without damaging a 5-gallon bucket.
The empty barrels without cover are automatically conveyed to an external cleaning machine for comprehensive cleaning of stains, scale, and dust accumulated over long-term use.
Then, the empty barrels enter an internal cleaning machine, a crucial step in ensuring drinking water hygiene.

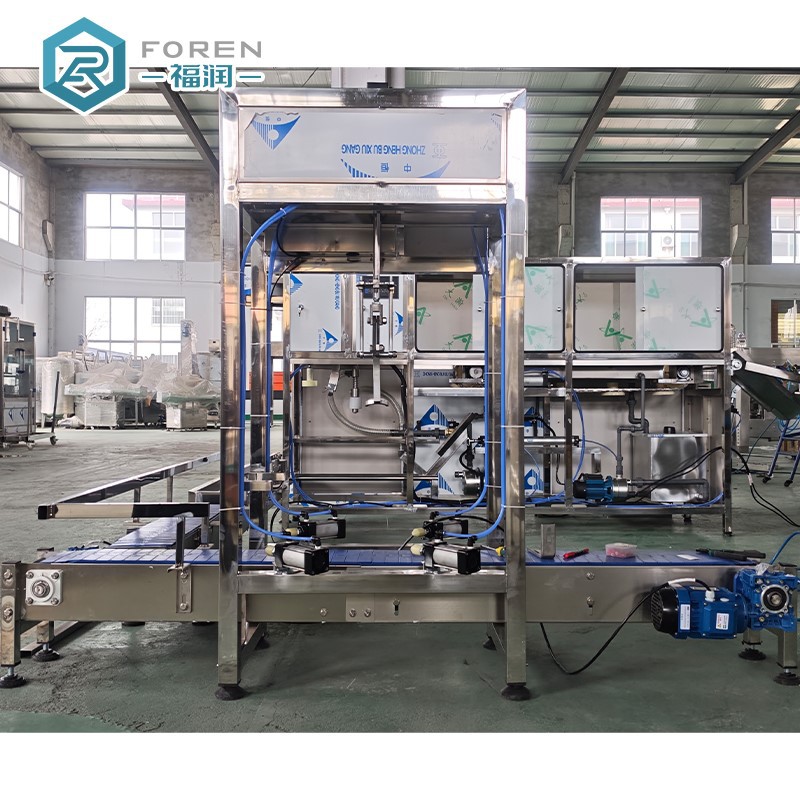

After the empty barrel is cleaned, they are automatically conveyed to the filling machine for the core filling process. The filling machine uses pressure filling, with all parts in contact with the product made of 304 stainless steel. The inner and outer surfaces of the filling cylinder are mirror-polished, eliminating any unsanitary corners and facilitating cleaning and disinfection.
After filling, the barrel water will be capped by a capping machine. Then, a plastic film will be placed over the bottle neck, followed by heat shrinking. This ensures the barrel water's airtightness and prevents leakage and contamination during transportation and storage.
When the barrel water is finished package, the laser marking machine will automatically print key information such as the production date, shelf life, and batch number onto each bottle. The markings are clear, wear-resistant, and not easily rubbed off. And the barrel water will pass through a bagging machine to encase them in plastic bags. This protects the barrel water from collisions and abrasion during transportation and storage, providing moisture protection, dust protection, and preventing breakage, thus improving product transportation safety.
Finally, a palletizing machine automatically stacks the bagged barrel water into stacks, eliminating the need for manual handling and significantly saving labor costs. It also avoids problems such as bottle breakage and collapse caused by manual stacking.
Qingzhou Foren Water Treatment Equipment Co., Ltd. has a professional design team and equipment engineers who can customize and produce 120bph-1200bph barrel water filling equipment according to customers' production requirements, and provide customers with comprehensive after-sales service.
