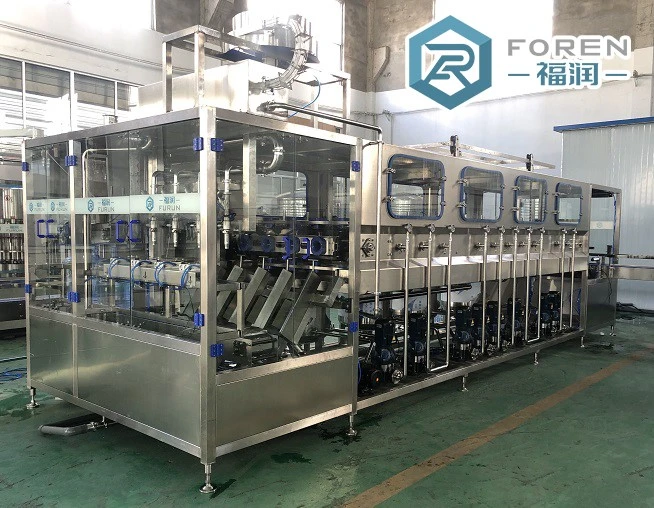

FOREN's barrel water filling line is equipped with a rinsing system, a filling system, and a capping system. It is a three-in-one filling equipment independently developed and manufactured based on advanced foreign technology and in accordance with the development needs of filling equipment.
Technical Parameter:
|
18.9L Circulating Barrel Water Filling Line |
|||||
|
No. |
FR-QGF-300 |
FR-QGF-450 |
FR-QGF-600 |
FR-QGF-900 |
FR-QGF-1200 |
|
Number of filling heads |
2 |
3 |
4 |
6 |
45547 |
|
Machine type |
Linear |
Linear |
Linear |
Linear |
Linear/Spiral |
|
Barrel size |
⌀270*490mm 18.9L |
||||
|
Gas source pressure(MPa) |
0.6-0.8 |
||||
|
Gas consumption(m³/min) |
1.2 |
1.2 |
1.2 |
1.8 |
1.8 |
|
Total power(kw/h) |
6 |
7.2 |
7.5 |
8.8 |
9.5 |
|
Dimensions(L*W*H)(mm) |
5800*1900*2800 |
6800*2200*2800 |
6800*2500*2800 |
6800*2900*2800 |
4000*1200*1900 |
|
6800*2100*2000 |
|||||
|
Total weight(KG) |
1500 |
1500 |
2000 |
3000 |
3200 |

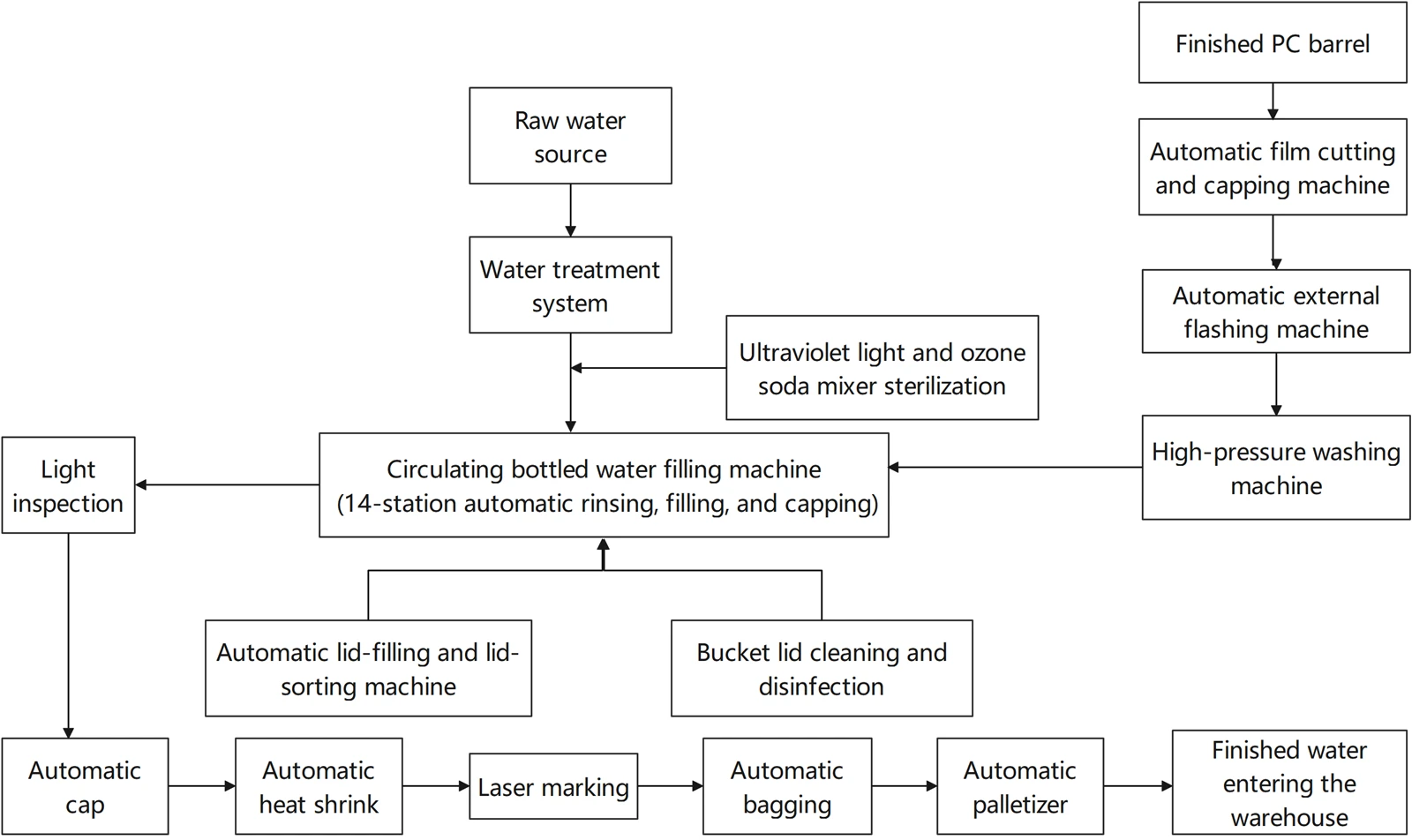

Barrel water filling line process flow diagram:
Composition of a 3-in-1 barrel water filling line:

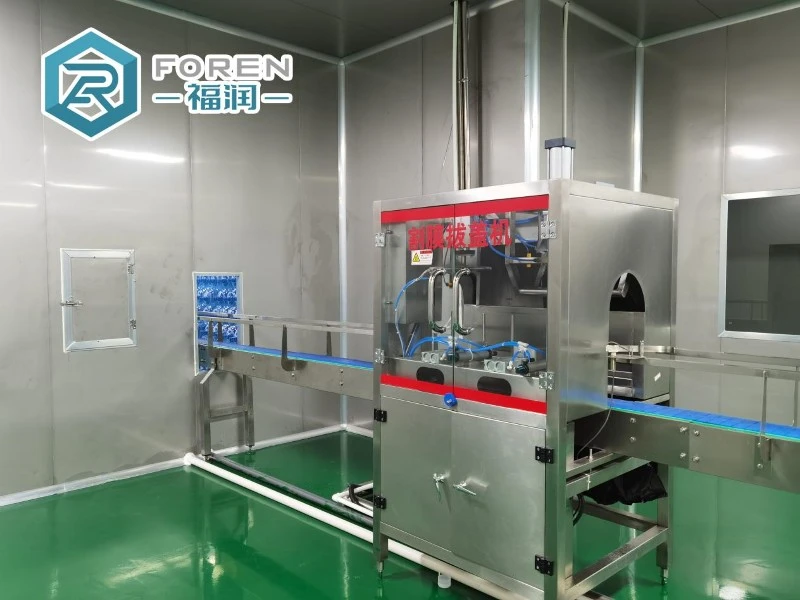

1. Automatic Film Cutting and Uncapping Machine:
It can accurately cut the sealing film and easily lift the lid using a powerful suction cup and robotic arm during the capping process.
Removes stains and impurities from the outer wall of the bucket using a high-speed brush.
3. High-Pressure Internal Flushing Machine：
A 120bar high-pressure plunger pump pressurizes the water tank to provide 360° thorough flushing of the inner wall. Used for cleaning and descaling the inner wall of water tanks.
4.Automatic bagging machine
Applies film to the barrel and seals it.
5.Automatic Palletizer:
Automatically identifies, grabs, transports, and accurately stacks bottled water, reducing labor costs.
FOREN is a comprehensive supplier of water treatment and filling equipment, integrating R&D, production, and sales. Located in Qingzhou City, Weifang, Shandong Province, our company boasts a standard factory covering approximately 5,000 square meters, with convenient transportation. Customers are welcome to visit our factory.
