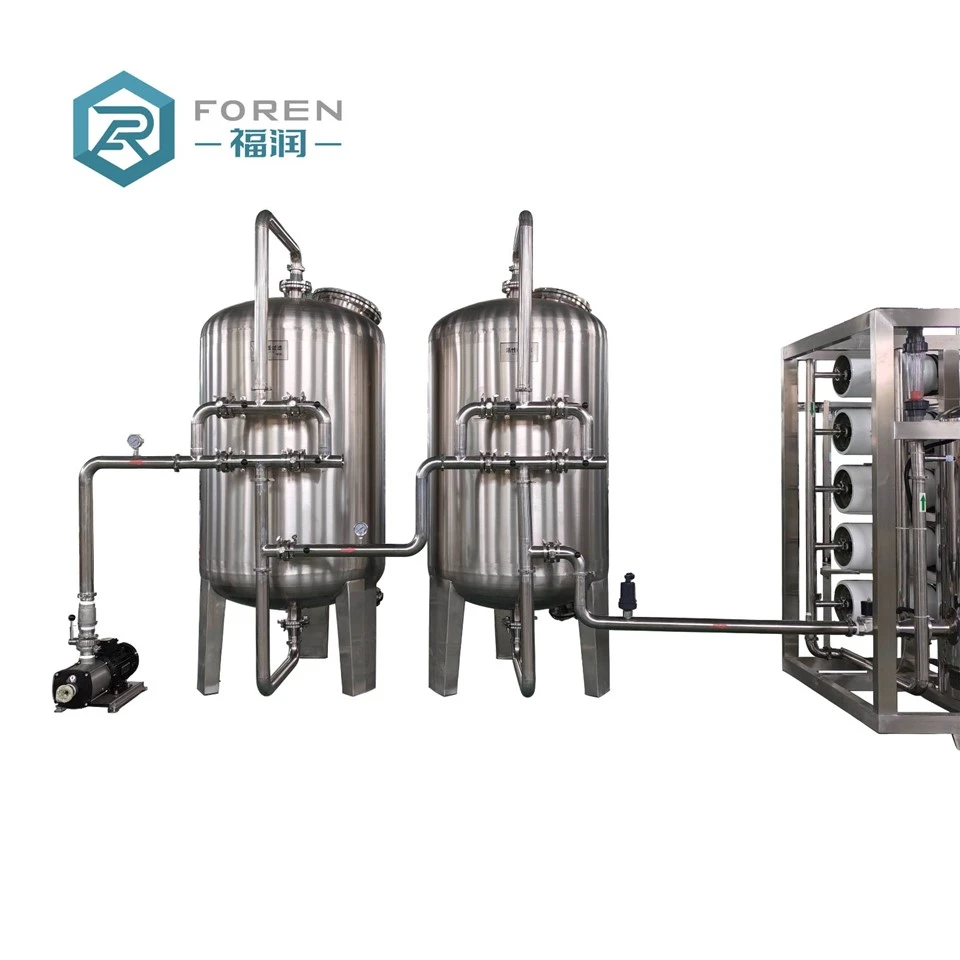

As Qingzhou Foren Water Treatment Equipment Co., Ltd.'s flagship medium-sized water treatment unit, the 10000 LPH RO plant is precisely suited for three core scenarios: centralized water supply in medium-sized production plants, centralized water supply stations in villages/industrial parks, and deep reuse of industrial wastewater. Relying on its mature and reliable membrane module configuration and stable design under all operating conditions, it has become the preferred solution for water treatment systems of many industrial clients.
In terms of core filtration and water treatment performance, 10000 LPH RO plant adopts an industry-standard multi-stage membrane arrangement structure, equipped with a 10-5 standard membrane array and 10 pcs 8040 reverse osmosis membrane elements. During normal operation, the system's recovery rate is stably maintained at 70%–80%, the desalination rate of the native membrane elements is no less than 98%, and the resistivity of the treated water can reach over 0.1MΩ・cm, fully meeting the stringent water quality standards for process water, centralized domestic water supply, and wastewater reuse. To extend the lifespan of the membrane modules, we strictly control the feed water flux to within 18 L/m²·h within the system program. This reduces the accumulation of contaminants on the membrane surface from the operational parameter level, lowering the risk of frequent fouling at the source and reducing subsequent maintenance costs.
The 10000 LPH RO plant's materials balance durability with customer budget flexibility. The main frame is uniformly constructed with a 304 stainless steel integrated welded frame, offering corrosion resistance, strong load-bearing capacity, and resistance to rust and deformation even in humid workshop environments. The pretreatment tank can be customized to meet specific needs; customers can choose between 304 stainless steel or fiberglass tanks based on water quality conditions and budget. Water piping options include food-grade stainless steel and PVC pipes. Qingzhou Foren Water Treatment consistently adheres to a customized approach, avoiding one-size-fits-all configurations. Regardless of budget, we provide cost-effective, complete solutions tailored to actual usage requirements.
The stability of continuous high-load operation over extended periods is the most prominent technical advantage of this 10-ton/hour reverse osmosis system. The entire system comes standard with a fully automatic flushing system and a CIP online chemical cleaning unit, equipped with a 500L large-capacity cleaning tank. It can complete offline/online acid and alkaline cleaning cycles, regularly removing scale, colloidal particles, and microbial contamination from the membrane surface, significantly extending the lifespan of the reverse osmosis membrane. The control system goes beyond basic start-up and shutdown automation logic, additionally featuring cross-membrane pressure differential warning and membrane flux decline trend data analysis functions. Maintenance personnel can intuitively monitor the membrane element wear status, predict maintenance schedules in advance, and avoid sudden shutdowns affecting production and water supply.
Addressing the challenges of low-temperature environments, we have also made localized upgrades. For areas where winter temperatures drop below 0℃, a plate heat exchanger and a full-unit insulation layer can be added. This allows for preheating of the raw water through steam heat exchange or electric heating, avoiding the problem of increased water viscosity and a precipitous drop in membrane permeate flow caused by low temperatures.
Qingzhou Foren Water Treatment Equipment Co., Ltd. has been deeply involved in the research and development and manufacturing of industrial pure water, reclaimed water, and centralized water supply equipment for many years. In addition to the standard 10000 LPH RO plant, we can provide full-process non-standard customization based on raw water quality reports, effluent standards, installation sites, and energy consumption requirements. From process design, equipment production, on-site installation guidance to after-sales operation and maintenance technical support, we provide customers with one-stop water treatment implementation services.
