TAP water reverse osmosis system adopts physical desalination, has multiple advantages:

RO system adopts physical non-phase change method, desalinating and purifying brine at room temperature. Whole RO water treatment system not need chemical treatment, so not discharge chemical waste discharge, eco-friendly, water recovery rate >70%. Single membrane element in TAP water reverse osmosis system desalination rate up to 99.3%, removing colloids, organics, bacteria, viruses and heavy metals in water.

Reverse osmosis system uses water pressure-driven, with the lowest energy consumption among various treatment methods. The system provides automatic protection function, auto-shutdown on failure. And it is small footprint, compact structure, reliable operation and high-quality water output.

TAP Water Reverse Osmosis System Process:

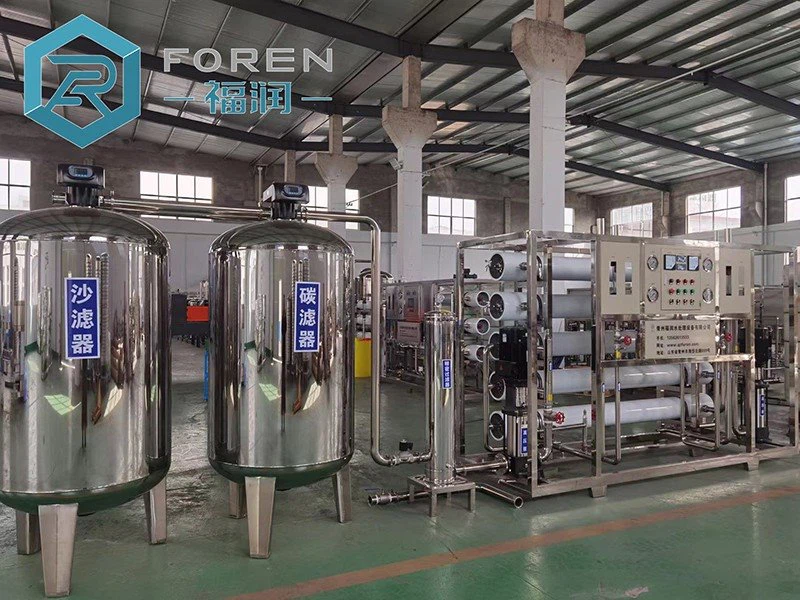

Raw Water → Raw Water Tank → Raw Water Pump → Multimedia Filter (Quartz Sand Filter) → Activated Carbon Filter → Water Softener → Precision Filter → High-Pressure Pump → Primary RO Unit → Pure Water Tank → High-Pressure Pump → Secondary RO Unit → UV Sterilizer → Water Outlet

Raw water is pretreated (filtration, softening) to remove sediments/scales; high-pressure pump pushes water through semipermeable RO membrane (retaining salts, microorganisms, organics); pure water is output finally.

Tap water, groundwater, surface water (rivers/lakes), brackish water, and low-salinity industrial wastewater can all be used as raw water for the TAP water treatment system. After processing, pure water is used in daily life, industrial production, medical systems, office settings, etc.

Technical Parameters:

Use	Drinking water, Bottle water, Industrial water, Commercial water, Sea water
System	Reverse osmosis system
Capacity	250/500/750/1000LPH, 2000LPH, 3000LPH, 4000LPH, 5000LPH, etc. Customization is available.
Voltage	380V, 220V/50HZ etc; (Power supply can be Customized)
Power	2-10 kw
Raw Water	TDS ≤ 40000PPM Working temperature: 0 ≤ 45°C Well water, tap water, seawater, salt water, brackish water
Produced water quality	Conductivity Less than 10μs/cm Total organic carbon ≤ 0.5mg/L Microorganism Less than 100cfu/ml
Desalination rate	96-99%
Water recovery rate	＞70%
Work pressure	Pretreatment: 0.2-0.4MPa, RO host: 0.8-1.6Mpa
Material	304 Stainless steel , PVC pipe, FRP tank
Control	Automatic or semi-automatic

TAP water reverse osmosis system is an advanced filtration system, integrates multi-stage pretreatment to protect membranes and removes dissolved salts, microorganisms, organics and fine impurities. Thereby producing high-quality pure water.

TAP water RO equipment adopts automatic control panel, pressure monitoring and safety protection devices, ensuring stable production and minimal maintenance. Stainless steel frame, modular design and customizable capacity make it suitable for industrial, commercial and drinking water applications, widely used in projects requiring reliable water quality, compact installation and energy-saving operation.
