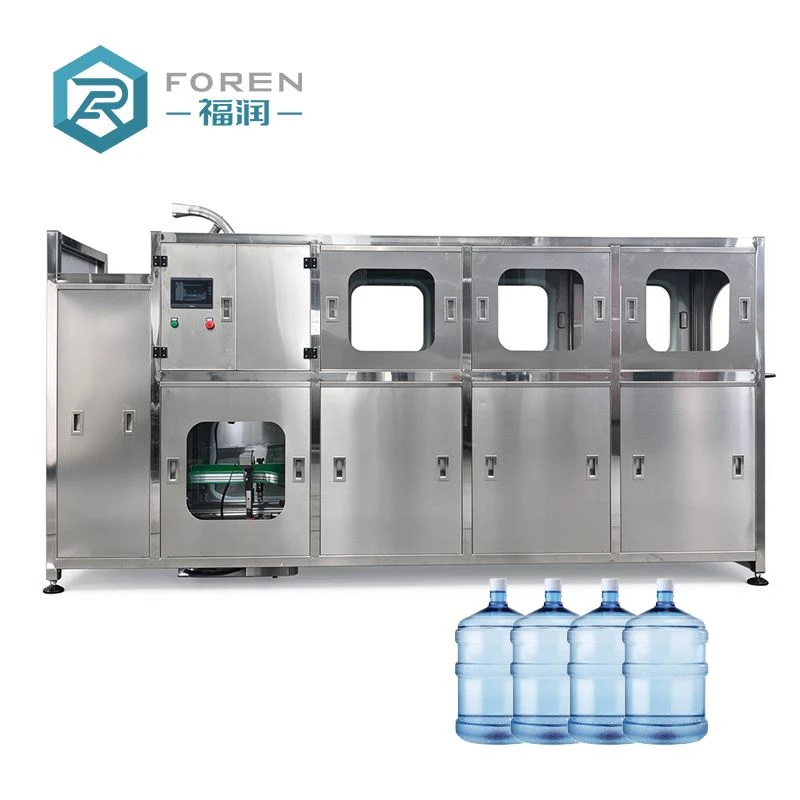

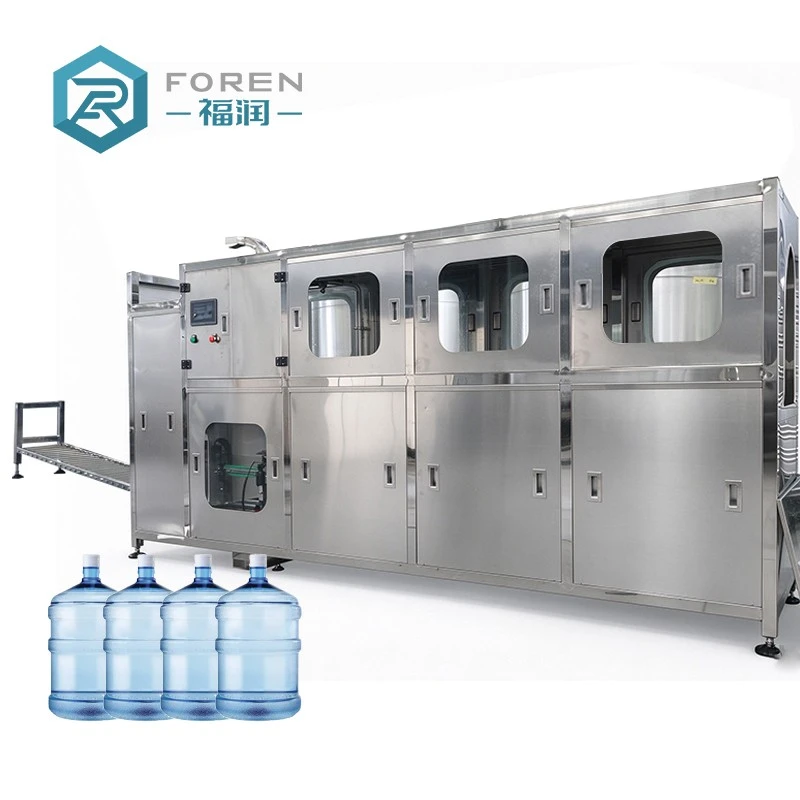

Manufactured by Qingzhou Foren Water Treatment Equipment Co., Ltd., our **5 gallon filling machine** is a fully automatic 3-in-1 monoblock system that integrates rinsing, filling and capping functions in one compact unit. With a stable production capacity of 120 barrels per hour, this 5 gallon water filling machine adopts a linear 5-station internal workflow to complete all barrel processing steps sequentially. It is built for small and medium bottled water plants, water refilling stations and drinking water factories that seek reliable, hygienic and low-maintenance barrel water bottling solutions.
Unlike separated production units, our 5 gallon filling machine combines all core processes within one stainless steel frame. The linear 5-station layout arranges each working position in a single row, so empty barrels move forward step by step without cross-contamination. This streamlined structure greatly reduces the machine footprint, which is ideal for factories with limited workshop space.

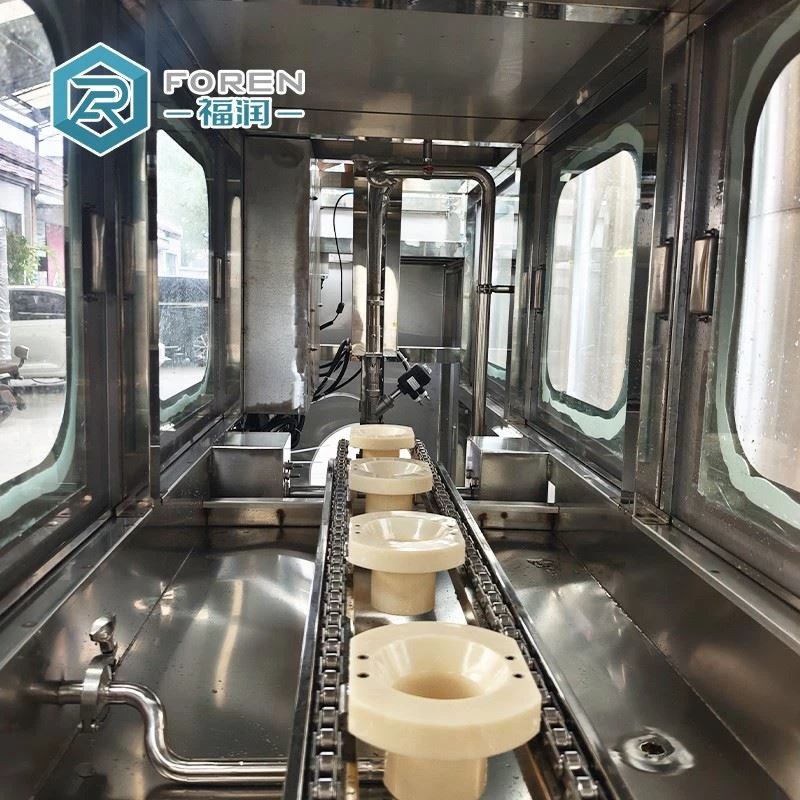

The whole production cycle starts when empty 5-gallon barrels are fed into the 5 gallon filling machine. The first station aligns and positions barrels for the rinsing phase. Multi-stage sanitation is implemented here: disinfectant spray removes dirt and microbes from the inner barrel wall, followed by pure water flushing and final sterile water rinse. Every rinsing step removes residual contaminants, building a solid hygiene foundation for the finished drinking water.

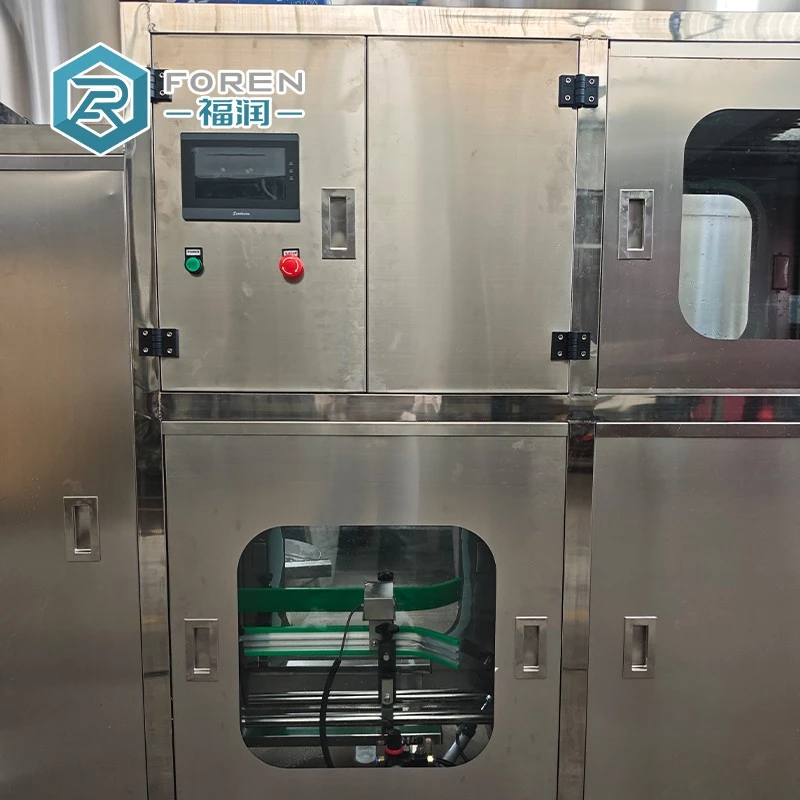

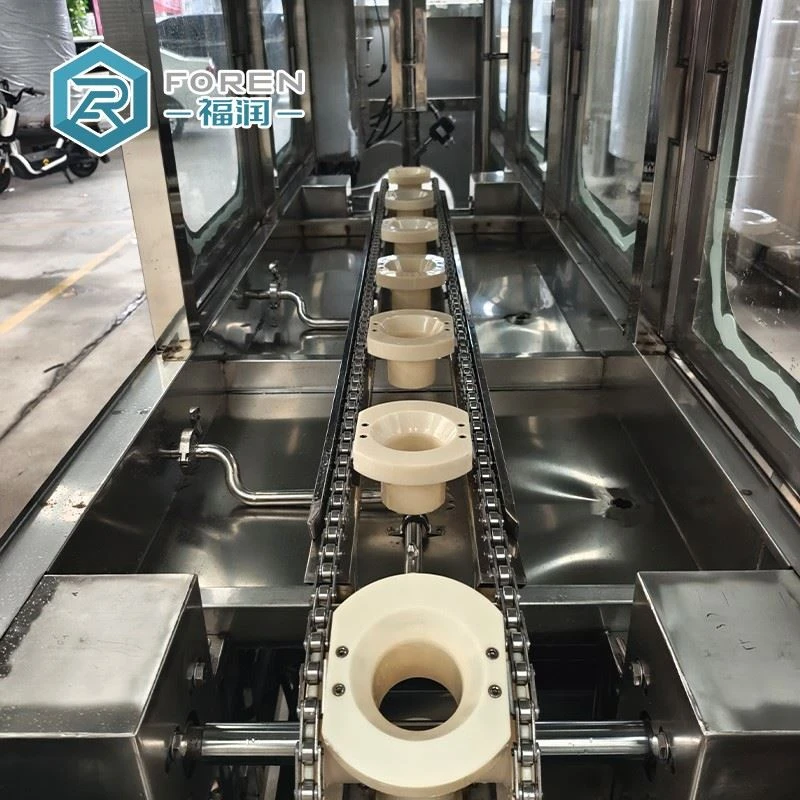

Next comes the precision filling process. Controlled by a PLC system, the pneumatic filling valve drops into the barrel mouth. Air inside the barrel is automatically discharged during filling, and water flows steadily into the barrel. Operators can adjust filling time via the touchscreen panel to maintain consistent liquid levels for every barrel. A water return design collects overflow water and sends it back to the pure water tank for reuse, cutting water waste and keeping the workshop floor clean.
After filling, barrels transfer to the capping station. The cap sorting mechanism automatically delivers and aligns barrel caps, then the pressing unit applies firm and uniform pressure to seal the barrel tightly. Caps are sanitized before pressing to avoid secondary pollution. Once capped, finished barrels exit the machine automatically. The entire process runs unattended; operators only need to monitor the touchscreen and perform routine inspections.
Made of food-grade stainless steel, the 5 gallon filling machine features smooth, easy-to-clean surfaces. The PLC control panel simplifies operation, while all key spare parts are globally accessible for convenient maintenance. Daily maintenance mainly includes checking sealing rings and cleaning spray pipelines. Stable power consumption also helps owners control long-term operational costs.
## Application Scenarios & Recommended Regions
This 5 gallon filling machine fits perfectly for small-to-medium bottled water factories, community water refilling stations, campus water supply stations and enterprise drinking water workshops. It is a flexible choice for investors starting a barrel water business with moderate initial investment.
In terms of target markets, the 5 gallon filling machine enjoys strong demand across many regions. It works well for water projects in Africa including Kenya, Uganda and South Sudan, where local tap water quality is limited and the barreled drinking water market keeps expanding. It is also widely adopted in South Asia markets such as Pakistan and Sri Lanka, plus Latin American regions like Chile and Colombia. Paired with our RO water treatment systems, this 5 gallon filling machine can form a complete turnkey barreled water production line for overseas clients.
If you are looking for a durable, cost-effective 5 gallon filling machine for your water bottling project, Qingzhou Foren Water Treatment Equipment Co., Ltd. can provide customized solutions and full after-sales support. Contact us for technical drawings, quotations and factory references.
