Product Details：

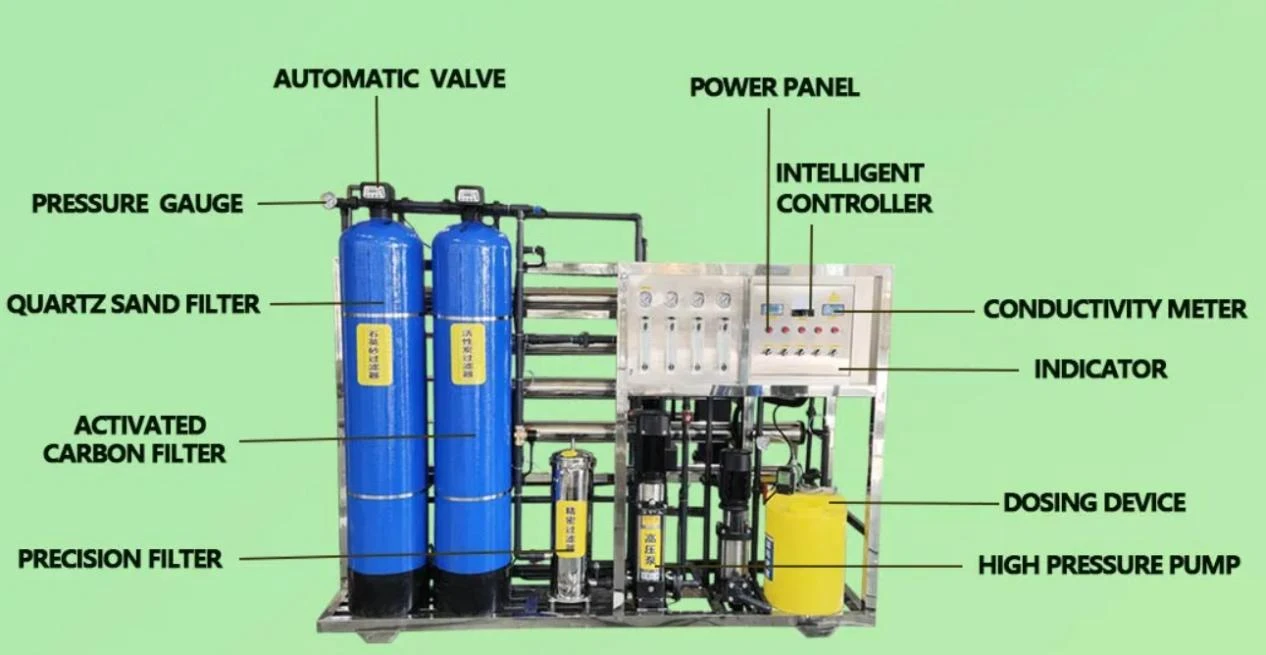

1. Booster Pump
In single stage reverse osmosis system, the booster pump increase the pressure of the raw water supply, provide the pressure and flow required for the entire system to operate normally.
2. Precision Filter
The precision filter is used to filter out the impurities that leaks in the upstream equipment and remove unfiltered.
3. High-Pressure Pump
The high-pressure pump is the main operating equipment in a single stage RO system, providing power for the reverse osmosis unit.
4. Reverse Osmosis Membrane
The function of the reverse osmosis membrane is to transfer water from the high-concentration solution side to the low-concentration solution side, thereby removing impurities from the water.
The working principle of a single stage reverse osmosis system is to utilize the precision of RO membrane to effectively remove charged ions, inorganic substances, colloidal particles, bacteria, viruses, and organic matter from water.
Reverse osmosis water treatment equipment is very important for producing high-purity water, desalinating brackish water, and treating wastewater.
Technical Parameters：
|
Model |
Water Making Ability |
Inlet Caliber |
Effluent Caliber |
Blowdown alCer |
Size(mm) |
Power |
|
FRRO-0.5T |
0.5m³/h |
DN20 |
DN20 |
DN15 |
1500×600×1500 |
1.3kw |
|
FRRO-1T |
1m³/h |
DN25 |
DN25 |
DN20 |
1700×600×1500 |
2.1kw |
|
FRRO-2T |
2m³/h |
DN32 |
DN25 |
DN20 |
2500×1000×1950 |
4.4kw |
|
FRRO-3T |
3m³/h |
DN40 |
DN32 |
DN25 |
2500×1200×2150 |
4.5kw |
|
FRRO-5T |
5m³/h |
DN50 |
DN40 |
DN32 |
2500×1350×2150 |
7.0kw |
|
FRRO-8T |
8m³/h |
DN50 |
DN50 |
DN40 |
3500×1500×2150 |
11kw |
|
FRRO-10T |
10m³/h |
DN50 |
DN50 |
DN40 |
3500×1600×2300 |
15kw |
Reverse Osmosis (RO) is a separation technology for cutting-edge membrane,that driven by pressure and based on a semi-permeable membrane.
When the pressure applied to the system exceeds the osmotic pressure of the feed solution, water molecules can smoothly pass through the high-precision semi-permeable membrane.
Meanwhile, the harmful substances that such as ions, organic compounds, bacteria and viruses in the water are effectively retained.
In this way, single stage RO system achieves water separation, purification and refinement, delivering safe, pure and high-quality water for you.
